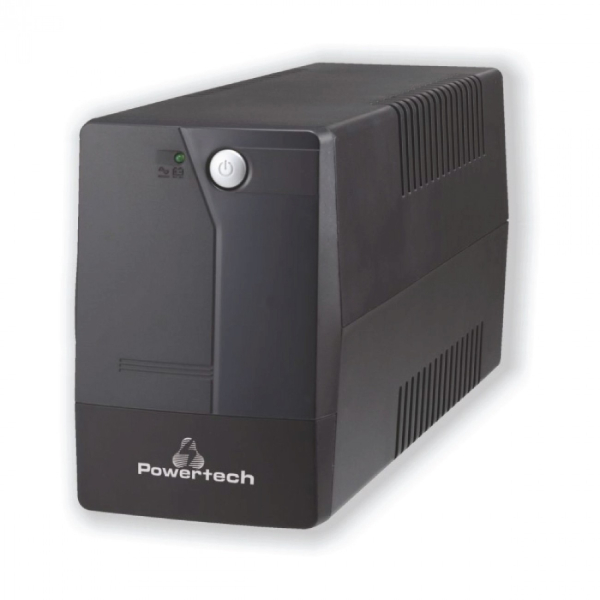

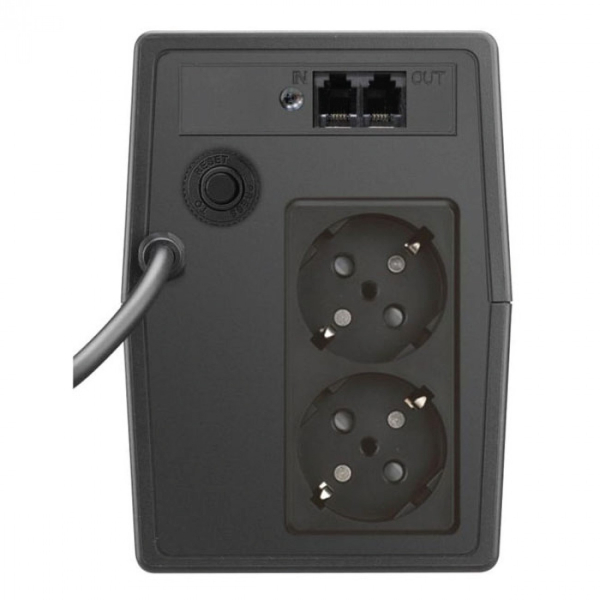

Powertech UPS 850volt / 510 green

Model: PT-850

Capacity: 850 VA / 510 W

• Input

Voltage: 110/120 VAC or 220/230/240 VAC
Voltage Range: 81-145 VAC / 162-290 VAC
Frequency Range: 60/50 Hz (auto sensing)

• Output

Frequency Range: (Batt. Mode) ± 10%
Waveform (Batt. Mode): 50 Hz or 60 Hz ± 1 Hz
Transfer Time: Typical 2-8 ms
AC Voltage Regulation Simulated Sine Wave

• Battery

Battery Type & Number: 12 V/7 Ah x 1 12 V/9 Ah x 1
Typical Recharge Time: 4 hours up to 90% capacity

• Protection

Full Protection Overload, discharge, and overcharge protection

• Indicators

AC Mode Green lighting
Battery Mode Green Flashing

• Alarm

Battery Mode Sounding every 10 seconds
Low Battery Sounding every second
Overload Sounding every 0.5 second
Fault Continuously sounding

• Physical

Dimension, D x W x H (mm) 279 x101 x142
Net Weight (kgs) 4.2 4.9

• Environment

Humidity 0-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 40dB
